Application
FIGURE: 1 / 5

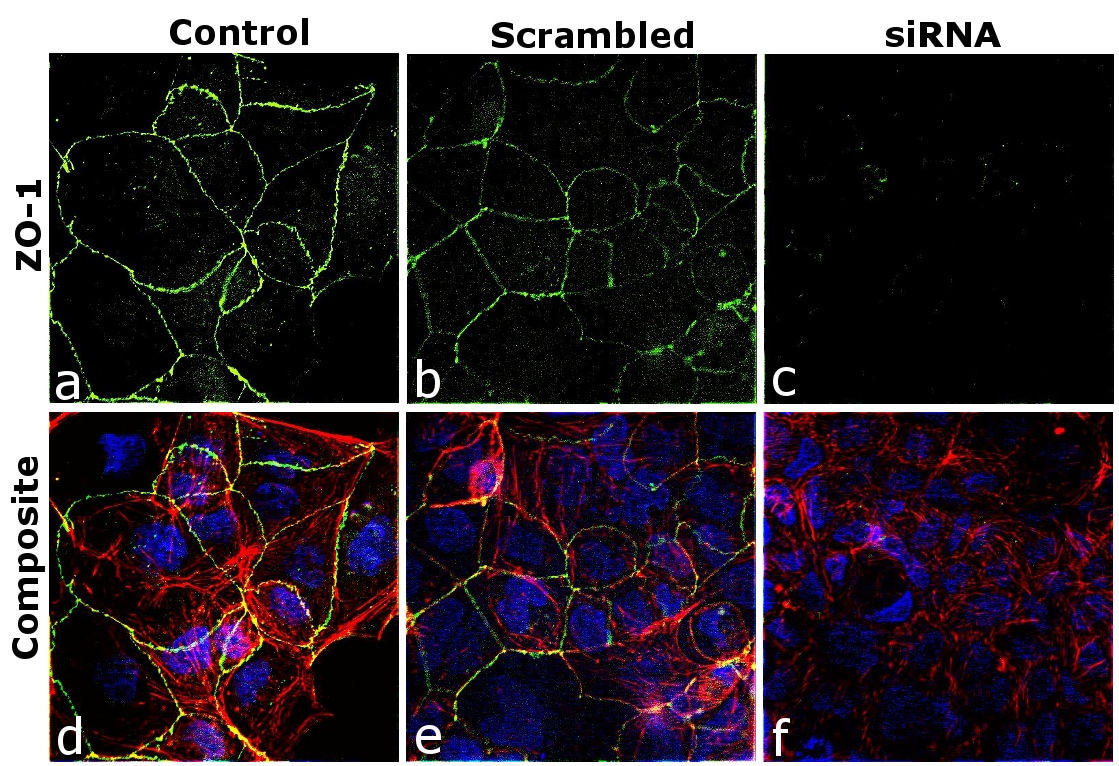

ZO-1 Antibody (740002MP555) in ICC/IF
Knockdown of ZO-1 was achieved by transfecting Caco-2 cells with ZO-1 specific siRNA (Silencer® select Product # S14155,S14156). Immunofluorescence analysis was performed on untransfected Caco-2 cells (panel a, d), transfected with non-specific scrambled siRNA (panel b, e) and transfected with ZO-1 specific siRNA (panel c, f). Cells were fixed, permeabilized, and labelled with ZO-1 recombinant mouse monoclonal antibody (ZO1-1A12), Alexa Fluor™ Plus 555 Antibody (740002MP555, 1:1,000 dilution) at 4 degree Celsius overnight. Nuclei (blue) we... View More
Product Details
740002MP555
Applications
Tested Dilution
Publications
Product Specifications
Species Reactivity
Human
Host/Isotype
Mouse
/ IgG1
Expression System
Expi293
Class
Recombinant Monoclonal
Type
Antibody
Clone
ZO1-1A12
Immunogen
Human recombinant ZO-1 fusion protein encompassing amino acids 334-634
Conjugate
Alexa Fluor™ Plus 555
Excitation/Emission Max
558/572 nm
View spectra
Form
Liquid
Concentration
1.0 mg/mL
Purification
Protein A/G
Storage buffer
proprietary buffer, pH 6.5
Contains
0.008% Bromonitrodioxane, 0.008% Methylisothiazolone
Storage conditions
4°C, store in dark, DO NOT FREEZE!
Shipping conditions
Wet ice
RRID
AB_3093158
Product Specific Information
Alexa Fluor™ Plus recombinant antibodies are conjugated using new, proprietary dye chemistry so you can generate stunning data. Alexa Fluor™ Plus antibodies represent an advancement in fluorescent conjugate technology. Alexa Fluor™ Plus antibodies provide brighter signal compared to leading Alexa Fluor™ antibodies, providing you with better signal-to-noise for your critical experiments. These antibodies show better specificity and lot-to-lot consistency as these are recombinant antibodies, generated by cloning specific genes for the desired antibodies into an expression vector and expressed in vitro.
Using conjugate solutions: Centrifuge the protein conjugate solution briefly in a microcentrifuge before use; add only the supernatant to the experiment. This step will help eliminate any protein aggregates that may have formed during storage, thereby reducing nonspecific background staining.
Applications Tested: This ZO-1 antibody has been tested by immunohistochemistry of mouse testis tissue and immunocytochemistry and flow cytometric analysis of Caco-2 cells. This may be used at 0.063-0.5 µg per test for flow cytometry. A test is defined as the amount (µg) of antibody that will stain a cell sample in a final volume of 100 µL. Cell number should be determined empirically but can range from 10^5 to 10^8 cells/test. It is recommended that the antibody be carefully titrated for optimal performance in the assay of interest.
Excitation: 553 nm; Emission: 568 nm; Laser: Yellow Laser
Filtration: 0.2 µm post-manufacturing filtered.
Target Information
ZO-1 forms complexes with either ZO-2 or ZO-3. In addition, these proteins can also associate with claudin, occludin and F-actin, at tight junction stands, where they provide a linkage between the actin cytoskeleton and the tight junction. ZO-1 expression is significantly reduced in many breast cancer lines. ZO-2 and ZO-3 are ubiquitously expressed within epithelial tight junctions, and unlike ZO-1, which is also expressed at cell junctions of cardiac myocytes, ZO-2 is not expressed in nonepithelial tissue. ZO-1 is a protein located on a cytoplasmic membrane surface of intercellular tight junctions. ZO-1 may be involved in signal transduction at cell-cell junctions. Two transcript variants encoding distinct isoforms have been identified for the ZO-1 gene. Diseases associated with ZO-1 dysfunction include Celiac Disease and Congenital Nephrotic Syndrome.
For Research Use Only. Not for use in diagnostic procedures. Not for resale without express authorization.
Related Products for
Immunocytochemistry
Catalog #
740002MP647
Invitrogen

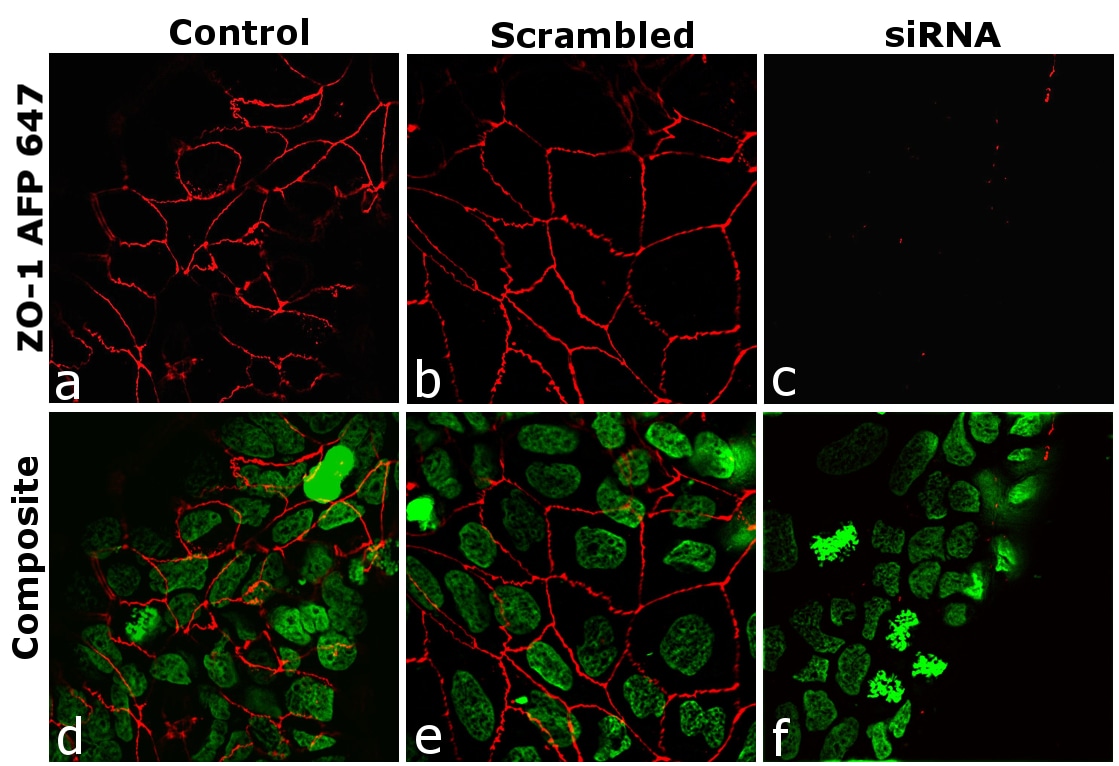

ZO-1 Recombinant Mouse Monoclonal Antibody (ZO1-1A12), Alexa Fluor™ Plus 647
Unit Size :
50 µL
Catalog #
740002M
Catalog #
740002MP488
Invitrogen

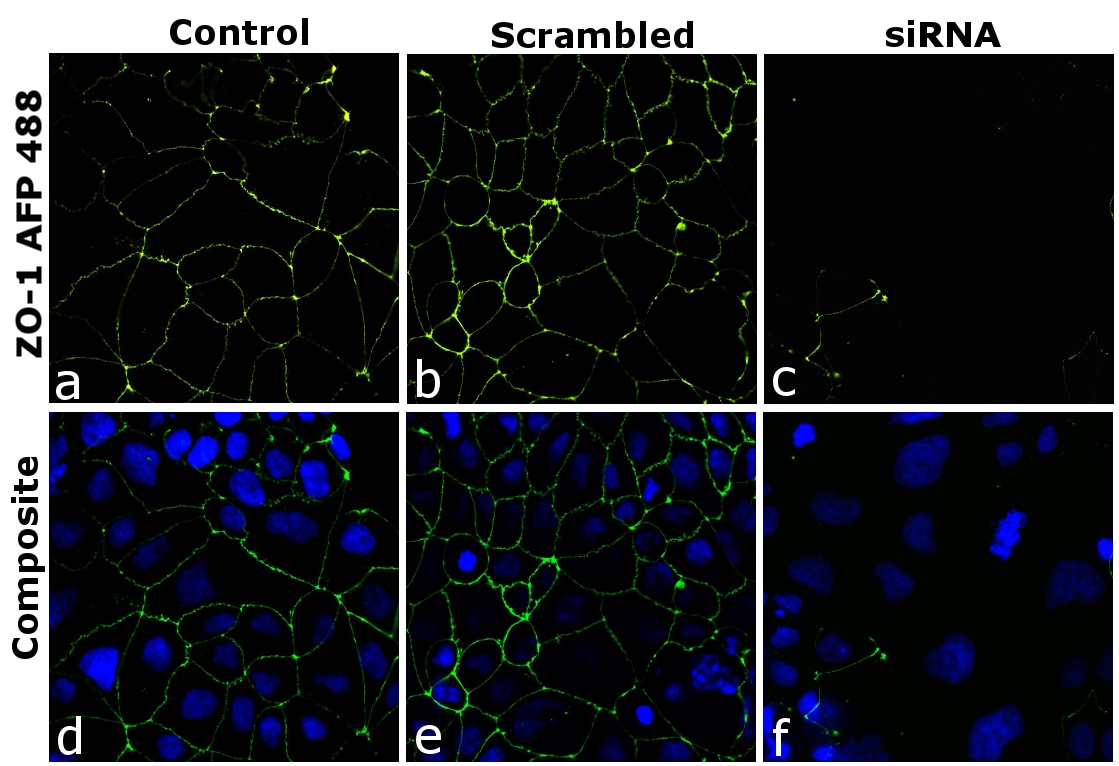

ZO-1 Recombinant Mouse Monoclonal Antibody (ZO1-1A12), Alexa Fluor™ Plus 488
Unit Size :
50 µL
References (0)
Have you cited this product in a publication?
Let us know so we can reference it here.
Bioinformatics
Protein Aliases: DKFZp686M05161; MGC133289; OTTHUMP00000174520; Tight junction protein 1; Tight junction protein ZO-1; zona occludens 1; Zona occludens protein 1; zonula occludens 1 protein; Zonula occludens protein 1
Gene Aliases: TJP1; ZO-1; ZO1
UniProt ID: (Human) Q07157
Entrez Gene ID: (Human) 7082
