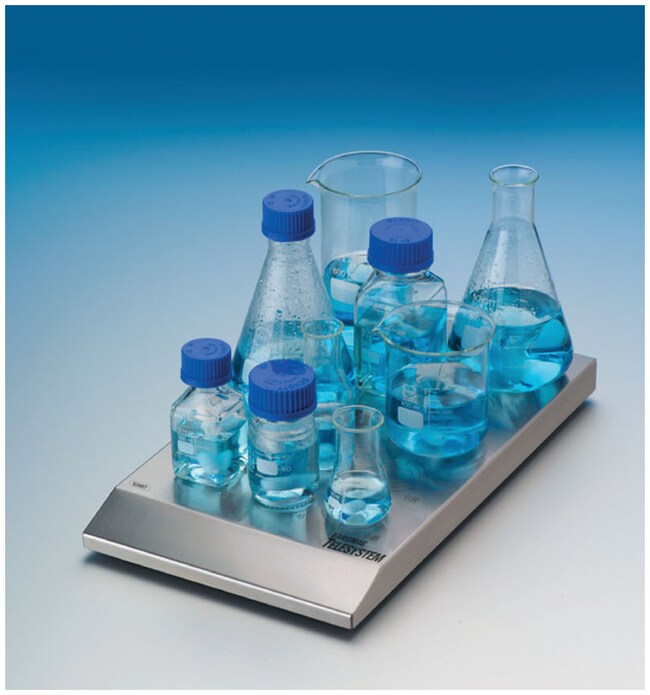

Cimarec™ i Telesystem Multipoint Stirrers
Cimarec™ i Telesystem Multipoint Stirrers
Actual product may vary
Thermo Scientific™

Cimarec™ i Telesystem Multipoint Stirrers

Safely conduct applications with aggressive media in high-humidity environments with these multipoint stirrers.
Catalog number 50088078
Price (JPY)/ Each
-
Request A Quote
Capacity:
200 mL/position
Speed:
100 to 2000 rpm
Stirring Positions:
6

Safely conduct applications with aggressive media in high-humidity environments with Thermo Scientific™ Cimarec™ i Telesystem Multipoint Stirrers. The stirrers are designed for integration with incubators and controlled climate chambers.

Features:

  • All models submersible for use in water baths up to 50°C
  • External controllers decrease power consumption and lower heat output
  • Chemical-resistant, sealed stainless-steel housing
  • Easy recall of last used settings
  • Operating conditions are -10°C to +56°C at 100%RH in air; 0°C to 50°C submerged in water
  • IP 68 protection; easily cleaned with running water

Effective Stirring:

  • Inductive drive ensures completely synchronized stirring at all positions
  • 6-, 15- or 60-position stirrers
  • Smooth and even stirring as low as 100rpm
  • Stir speeds up to 2000rpm
  • Stir volumes up to 2L per multipoint

Includes:

Cord set with various plugs and choice of controller: the Telemodul 20 C with microprocessor controls, adjustable power setting, and programmability or the Telemodul 40 C with higher speeds, more power settings, and PC control


Warranty:
5 years

Disclaimer to internal research use restriction: Any restrictions on the purchaser to utilize the product(s) for internal research purposes only does not apply to the product(s) on the web pages associated with this statement.
Specifications
Speed100 to 2000 rpm
Stirring Positions6
Top Plate MaterialStainless Steel
Capacity200 mL/position
ShapeSquare
Voltage100/240 V
Wattage4/40 w
Dimensions (L x W x H)16.5 x 9.4 x 1.4 in. (420 x 240 x 35 mm)
Height (English)1.4 in.
Height (Metric)35 mm
Length (English)16.5 in.
Length (Metric)420 mm
Width (English)9.4 in.
Width (Metric)240 mm
Certifications/ComplianceCE
DescriptionTelesystem 6 Position w/Telemodul 40 C; Capacity 1 to 200mL per point
ModelTelesystem 6 Position w/Telemodul 40 C
Temperature Range (Metric)-10°C to +56°C (Operating)
TypeStirrer
Weight (English)17.6 lb.
Weight (Metric)8 kg
Unit SizeEach
