Thermo Scientific software products Avizo, Amira and PerGeos (hereinafter referred to as “Thermo Scientific Software” ) use the FlexNet licensing tool for supporting floating licenses. This document contains some limited information that can be used as a quick server installation and configuration guide. Be warned that a complete Licence Administration Guide is provided with your server installation, and it is also available here . In the scenario of this guide, you have purchased a specific number, N, of product licenses.
The FlexNet license server tracks the licenses being used and allows simultaneous use of up to N instances of the software.
The advantage of this approach is that, unlike node-locked licensing, the product is not locked to a specific computer, but can be run on any computer that can communicate with the license server.
Figure 1 – FlexNet license server architecture example
Warning: Installation and management of floating licenses is not a trivial undertaking. It can require configuration of firewalls, proxy server and anyway an in-depth knowledge of the network configuration at your site.
Ideally you will have access to a knowledgeable, resourceful, and experienced IT group to provide the necessary support.
2. Configure your Thermo Scientific Software Client Applications to Use a FlexNet License Server When configuring your Thermo Scientific Software licensing mode, you must choose “License server” and specify the name of the server (here “my-lic-server1”). The name can be specified using the host name or the IP address.
Please refer to the Thermo Scientific License Manager Software documentation.
3. Install a FlexNet License Server The first thing to do is decide on which computer you wish to run the FlexNet license server. This system should be “reachable” by mean of a network connection from any system that might want to request a license. It should also be highly reliable.
The server can be installed on a computer on which the Thermo Scientific Software is installed, but it does not have to.
It is possible to do FlexNet licensing in a heterogeneous environment. That is, the server and the Thermo Scientific Software can be running on different operating systems. For instance, the FlexNet server could be on a Linux box, with the users running the Thermo Scientific Software on a Windows platform.
If your site already has a FlexNet license server running that is used for licensing other vendors’ products, this may affect where and how you decide to configure the Thermo Scientific Software license server.
For more information, please refer to FlexNet Publisher – License Administration Guide “ Managing Licenses from Multiple Software Publishers “.
There are two versions of the license server manager:
lmadmin —The web-based license server manager (elsewhere in this guide we will use lmadmin or “FlexNet Publisher ® web user interface” interchangeably). lmgrd —The original license server manager with a command-line interface.
You can use lmgrd to manage your FlexNet license server but it uses older technology, and may become deprecated.
Here is the link to the FAQ section where you can find the documentation on “How to use lmgrd as an alternative of lmadmin “.
lmadmin provides improved methods of managing the license server and vendor daemons. This will be the only application documented in this starting guide.
For complete technical details, please refer to FlexNet Publisher – License Administration Guide , section “ License Server Manager lmadmin “.
Warning : To install a FlexNet license server, administrator rights are required.
3.1 System Requirements The supported platforms for installing a FlexNet license server and using the Thermo Scientific FlexNet tools for license administration are the following (see FlexNet Release notes section “ System Requirements for lmadmin” ) :
Microsoft Windows (64-bit) server tested platforms:
Windows 7 SP1 , Windows 8.1, Windows 10, Windows Server 2016, Windows Server 2019. It is a best practice to run license servers on a server-based OS. Thermo Fisher tested on Windows 10 (64-bit)
Linux x86-64 ( 64-bit) server tested platforms:
Red Hat Enterprise Linux 7 and 8 SUSE Linux Enterprise 11 SP4, 12 SP4, 15 Ubuntu 16.04, 18.04, and 18.10
Thermo Fisher tested on Red Hat Enterprise Linux 7 (64-bit)
Mac OS X (64-bit) server tested platforms:
Mac OS X 10.14 and 10.15. Thermo Fisher tested on Mac OS X 10.15 (64-bit)
3.1.1 Additional System Requirements for lmadmin To use lmadmin on Windows platforms, the relevant Microsoft Visual C++ Redistributable Package must be installed. For the required minimum version, refer to the FlexNet Release notes , section “System Requirements for lmadmin”. You have an option to install this package during the lmadmin installer process.
The lmadmin installer requires that JRE or OpenJDK 1.6 or later (for OS X: JRE or OpenJDK 1.7 or later) and no higher version than JRE/OpenJDK 15 is installed . If the JRE/ OpenJDK is not already present on the machine, it must be installed separately, because it is not bundled with the lmadmin installer. Download links for the JRE can be found on java download page . Download links for OpenJDK versions can be found on OpenJDK download page .
Do not run the 32-bit lmadmin and the 64-bit lmadmin on the same system . If you are upgrading from the 32-bit lmadmin to the 64-bit version , you must stop and uninstall the 32-bit lmadmin first.
3.1.2 Supported Browsers for lmadmin lmadmin is tested on the following Web browsers:
• Red Hat Linux—Mozilla Firefox 46.x, Google Chrome 61.x
• Windows—Microsoft Internet Explorer 11, Microsoft Edge
• MacOS/OS X—Apple Safari 6.x and 11
3.2 Download License Server Installer To use Thermo Scientific Software, you must have installed version 11.16.6 or higher of the FlexNet tools on your system. You can download these tools via the following links.
If you have already installed a license server with a previous version of the FlexNet tools, please refer to section Upgrading the FlexNet license server of this document to upgrade your FlexNet license server.
Windows:
Linux:
Mac OS X:
3.3 Install lmadmin as License server manager Warning : To install lmadmin , the administrator’s rights are required.
Note : Installing lmadmin will temporarily stop the current FlexNet Publisher service (if already started).
Installation on Windows
Go to the directory where you have extracted the FlexNet server tools archive (refer to above section 3.2 ) and run lmadmin installer: flexnet-asglmd_mcslmd-server_11.16.6.0_windows-x64-msvc12u4/FlexNetLmadminInstaller/lmadmin-x64_n6-11_16_6_0.exe The default install directory is C:\Program Files\FlexNet Publisher 64-bit License Server Manager. You can modify it but make sure to have rights to write in it. You can import settings from a previously installed server and vendor daemon and you can check your settings before proceeding with the installation You must check Install Visual C++ 2013 Redistributable Package and agree to its license terms and condition to proceed. If you already have it installed on your system, you may see an error message indicating that a newer version of Microsoft Visual C++ Redistributable has been detected on the machine. You can ignore this error message and continue to the next step. You can set the IP port number for lmadmin web interface and choose the port number for the license server as well as other settings of the “ FlexNet Publisher ® web user interface” (do not alter default values if you are not at ease with them, and write them down before modifying them). Continue until the Service Configuration page, where you must check the box Run as a service . Perform all remaining steps with default values. Check that the server has started:
Open Windows Task Manager and look for the service lmadmin64 in the Services tab. If the service is stopped, start it. Open http://localhost:8090/ in a web browser (if you used the default port number, otherwise the port number you’ve set must be used). The dashboard of the license server should be displayed.
Installation on Linux
Warning: To install lmadmin , you must run the following steps as a non-root user with root privileges (do not use root user).
Open a Terminal window. Install lmadmin from directory FlexNetLmadminInstaller where you have extracted the FlexNet server tools archive:
sudo ./flexnet-asglmd_mcslmd-server_11.16.6.0_linux-x64-gcc48/FlexNetLmadminInstaller/lmadmin-x64_lsb-11_16_6_0.bin
By default, the lmadmin install directory is: /opt/FNPLicenseServerManager Perform all steps with default values and finish. Launch the command:
sudo chown -R <YourUserName> /opt/FNPLicenseServerManager
Add the current directory to your library path by entering the following command:
export LD_LIBRARY_PATH=/opt/FNPLicenseServerManager/:$LD_LIBRARY_PATH
setenv LD_LIBRARY_PATH /opt/FNPLicenseServerManager/:$LD_LIBRARY_PATH
Start the server with the command:
/opt/FNPLicenseServerManager/lmadmin
Check that the server has started:
Open http://localhost:8090/ in a web browser to access its web user interface. The process lmadmin should be displayed by the command:
ps -fC lmadmin
Installation on Mac OS X
Warning : To install lmadmin , you must run the following steps as a user with administrator rights (do not use root user).
Open a Terminal window. Install lmadmin , from directory FlexNetLmadminInstaller where you have extracted the FlexNet server tools archive:
./flexnet-asglmd_mcslmd-server_11.16.6.0_osx-x64-clang60/FlexNetLmadminInstaller/FlexNet_Publisher_License_Server_11_16_6_0.app/Contents/MacOS/FlexNet_Publisher_License_Server_11_16_6_0
Select /Applications/FNPLicenseServerManager as install directory. Perform all steps with default values and finish. Copy script service for lmadmin :
sudo cp ./flexnet-asglmd_mcslmd-server_11.16.6.0_osx-x64-clang60/FlexNetLmadminService/* /Library/StartupItems/
The script LMadmin should be updated with the command:
sed -i -e “s;/Applications/FNPLicenseServerManager;<your install directory>;g” /Library/StartupItems/LMadmin
sed -i -e “s;lmadminUser=\”lmadmin\”;lmadminUser=\”<your user>\”;g” /Library/StartupItems/LMadmin
Check that the logs directory for FNPLicenseManager exists:
Run this command to display logs directory contents:
ls -l /Applications/FNPLicenseServerManager/logs
If the logs directory doesn’t exist, create it:
mkdir /Applications/FNPLicenseServerManager/logs
Start the server with the command:
/Library/StartupItems/LMadmin start
Check that the server has started:
Open http://localhost:8090/ in a web browser to access its web user interface. Open Activity Monitor and check that the process lmadmin is running.
Note : For more information on lmadmin , please refer to FlexNet Publisher – License Administration Guide , section “ lmadmin License Server Manager “.
3.4 Setup FlexNet server for Thermo Scientific License 3.4.1 Prerequisites
Make sure you’ve run all the steps described above in this guide. Open a command prompt/terminal with administrator’s rights in the directory where you have extracted the FlexNet server tools archive and go to the FlexNetLicenseServerTools subdirectory. Enter the following command in the console to install Thermo Scientific anchor services:
For Windows:
installanchorservice asglmd asglmd-applications
Some antivirus may ask you the permission to execute the installanchorservice (see fig. 2). Check in the console that the installation of the vendor daemon has succeeded (see fig. 3).

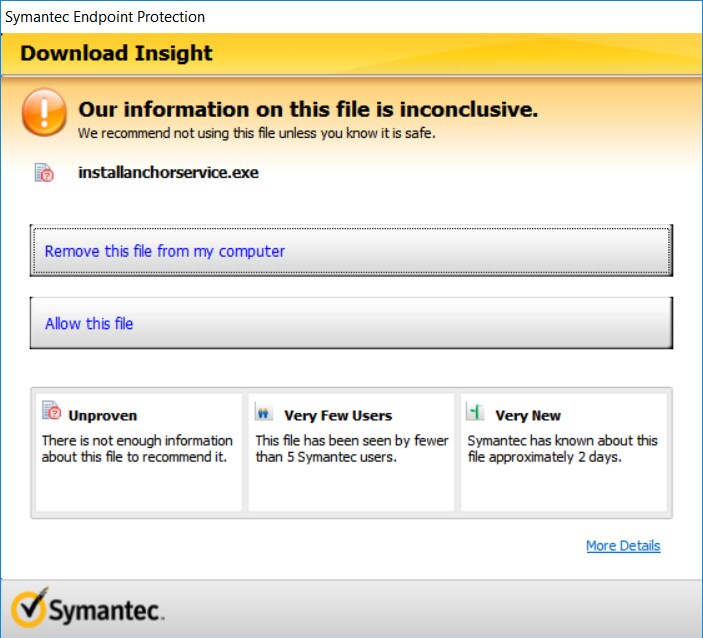

Figure 2 – Allow execution of installanchorservice.exe
Figure 3 – check installation is successful
The relevant Microsoft Visual C++ Redistributable Package must be installed. For the required minimum version, refer to the FlexNet Release notes , section “System Requirements for lmadmin” . You could have optionally installed this requirement during the lmadmin installer process, see chapter Install lmadmin as License server manager . Otherwise you can download and install these requirements here:
For Linux and Mac OS X:
In a terminal with administrator’s rights type the following command:
sh install_fnp.sh
Add the current directory to your library path by entering the following command where <PathToFlexNetLicenseServerToolsDirectory> must be replaced by the explicit path to the FlexNetLicenseServerTools directory:
export LD_LIBRARY_PATH=<PathToFlexNetLicenseServerToolsDirectory>:$LD_LIBRARY_PATH
setenv LD_LIBRARY_PATH <PathToFlexNetLicenseServerToolsDirectory>:$LD_LIBRARY_PATH
export DYLD_LIBRARY_PATH=<PathToFlexNetLicenseServerToolsDirectory>:$DYLD_LIBRARY_PATH
setenv DYLD_LIBRARY_PATH <PathToFlexNetLicenseServerToolsDirectory>:$DYLD_LIBRARY_PATH
Please check that the folder /usr/local has write permission for activating, deactivating, and upgrading licenses.
3.4.2 Adding the asglmd Vendor Daemon to lmadmin
Make sure that process (service) asglmd is not running. If necessary, please stop it. To check it:
For Windows:
Open the Windows Task Manager and look in the Details tab. Stop asglmd . Right click on asglmd and stop it.
For Linux:
Open a Terminal, and run:
ps -fC asglmd
pkill asglmd
For Mac OS X:
Open Activity Monitor Stop asglmd process.
Copy/paste the asglmd and asglmd_libFNP files from the downloaded package FlexNetLicenseServerTools directory to the lmadmin install directory. By default, the lmadmin install directory is:
C:\Program Files\FlexNet Publisher 64-bit License Server Manager on Windows. /opt/FNPLicenseServerManager on Linux. /Applications/FNPLicenseServerManager on Mac OS X.
If you have just installed lmadmin , please check that the lmadmin service is running:
For Windows, open the Windows Task Manager and select the Services tab.
If lmadmin is not running, run lmadmin.exe (by default C:\Program Files\FlexNet Publisher 64-bit License Server Manager )
For Linux open a Terminal, and run:
ps -fC lmadmin
If lmadmin
For Mac OS X, open Activity Monitor. If lmadmin is not running, open a terminal and start it using the command:
/Library/StartupItems/LMadmin start
If lmadmin cannot be run, please refer to section Install lmadmin as license server manager .
Open http://localhost:8090/systeminfo in a web browser.
If you have just installed lmadmin , you will be prompted to enter a name and a password: enter “admin” and “admin”. Retrieve and copy the Ethernet Address . If Ethernet Address is not displayed, you can use the Volume Serial Number .

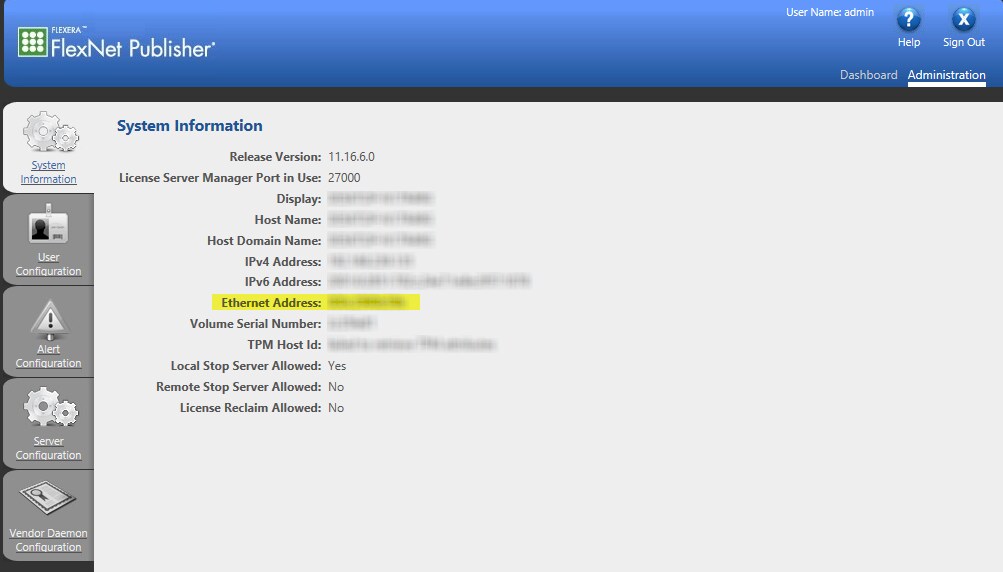

Figure 4 – lmadmin – Retrieve and copy the Ethernet Address
Create a temporary text-only file (at any location in your file system) named license.dat containing:
SERVER this_host <EthernetAddress>
VENDOR asglmd
For instance:
SERVER this_host 012345678901
VENDOR asglmd Open http://localhost:8090/vendor in a web browser, to set up your license server as follows:
Click on Import License . Select your previously created license.dat file. Check Overwrite License File on License Server . Click on Import License.

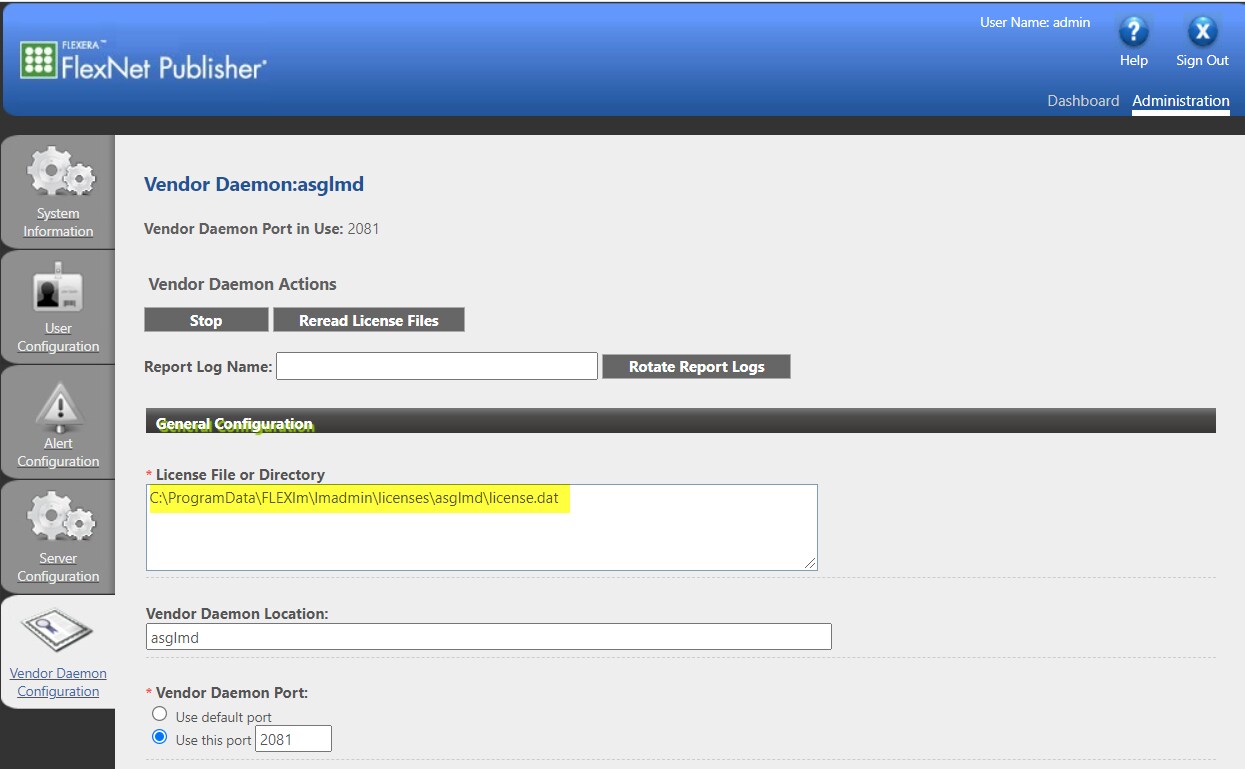

Check in http://localhost:8090/vendor that asglmd vendor daemon has been installed . The vendor daemon won’t start and will be in “Down” status until a valid license is activated for that vendor daemon.

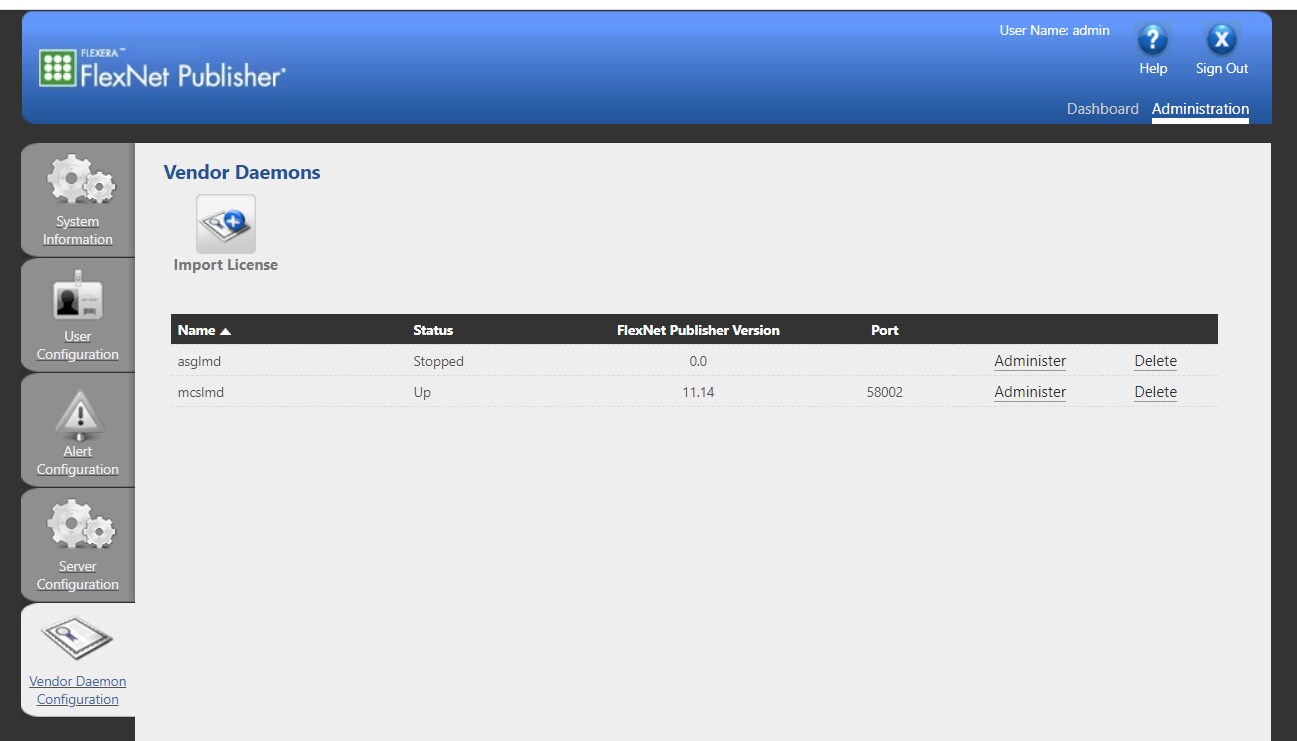

Figure 5 – lmadmin Administration page shows installed vendor daemons
3.4.3 Adding the mcslmd Vendor Daemon to lmadmin You can skip this section if your server must NOT provide licenses for Avizo, Amira or PerGeos products released before 2020.3 version.
Make sure that process mcslmd is not running. To check it:
For Windows:
Open the Windows Task Manager and look in the Details tabs. Stop mcslmd. Right click on mcslmd and stop it.
For Linux:
Open a Terminal, and run:
ps -fC mcslmd
pkill mcslmd
For Mac OS X:
Open Activity Monitor Stop mcslmd process.
Copy/paste the mcslmd and mcslmd_libFNP files from the downloaded package FlexNetLicenseServerTools directory to the lmadmin install directory. By default, the lmadmin install directory is:
C:\Program Files\FlexNet Publisher 64-bit License Server Manager /opt/FNPLicenseServerManager on Linux. /Applications/FNPLicenseServerManager on Mac OS X.
If you have just installed lmadmin , please check that the lmadmin service is running:
For Windows, open the Windows Task Manager and select the Services tab. If lmadmin is not running, run lmadmin.exe (by default C:\Program Files\FlexNet Publisher 64-bit License Server Manager ) For Linux open a Terminal, and run:
ps -fC lmadmin
If lmadmin is not running, start it using the command:
/opt/FNPLicenseServerManager/lmadmin
For Mac OS X, open Activity Monitor If lmadmin is not running, open a terminal and start it using the command:
/Library/StartupItems/LMadmin start
Open http://localhost:8090/systeminfo in a web browser.
If you have just installed lmadmin , you will be prompted to enter a name and a password: enter “admin” and “admin”. Retrieve and copy the Ethernet Address . If Ethernet Address is not displayed, you can use the Volume Serial Number . See Figure 4 – lmadmin – Retrieve and copy the Ethernet Address
Create a temporary text-only file (at any location) named license.dat containing:
SERVER this_host <EthernetAddress>
VENDOR mcslmd
For instance:
SERVER this_host 012345678901
VENDOR mcslmd
Open http://localhost:8090/vendor in a web browser, to set up your license server as follows:
Click on Import License . Select your previously created license.dat file. Check Overwrite License File on License Server . Click on Import License .
Check that mcslmd vendor has started:

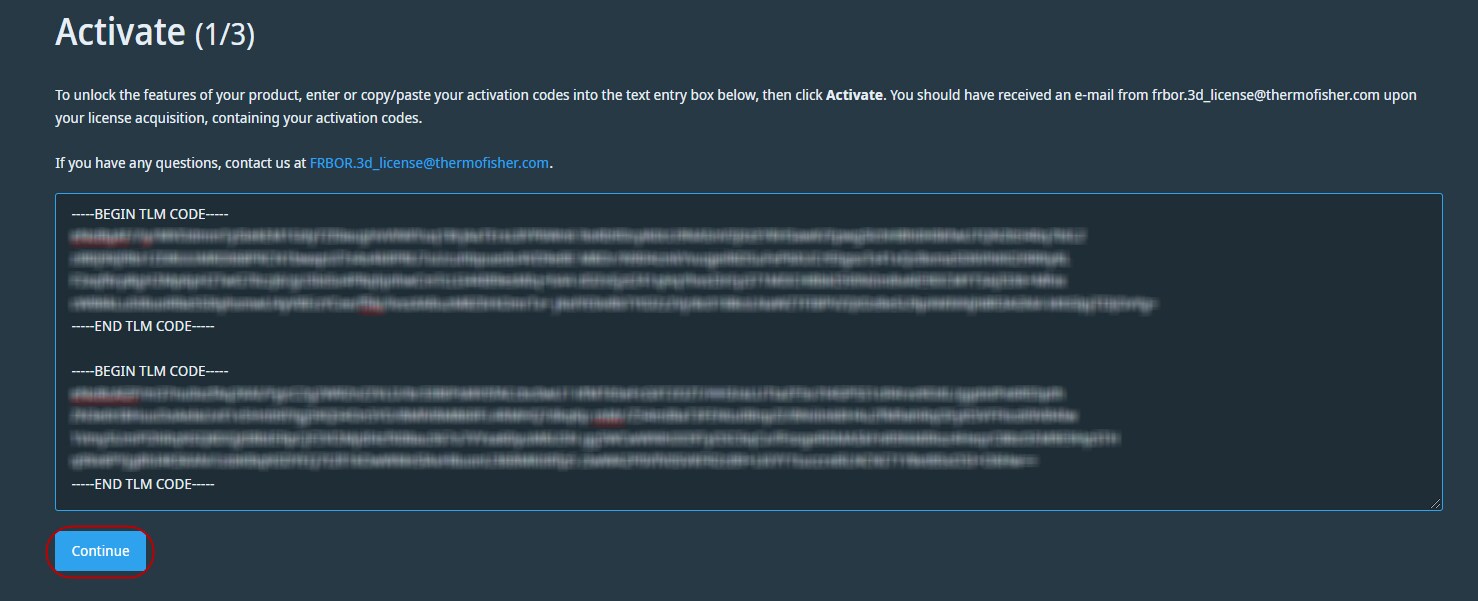

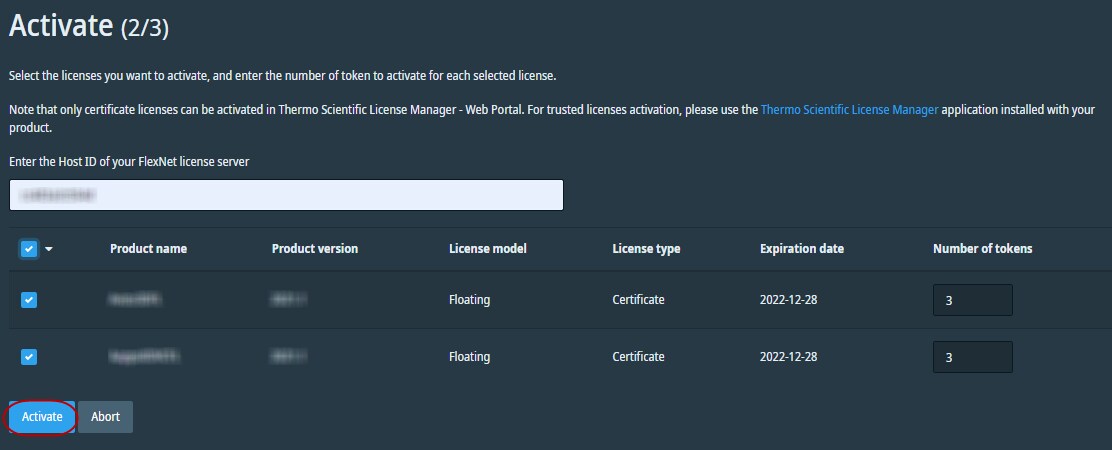

Check the activation status of your licenses (if no license is active on your server the mcslmd daemon will exit immediately after starting):
Open a command prompt/terminal in the directory where you extracted the FlexNet server tools archive and go to the FlexNetLicenseServerTools subdirectory Run ServerFNOODActivation -view Check the output, making sure the Status of each license is Enabled, and the Trust Flags are Fully Trusted. If they are not, please contact our customer support group for assistance. If no license is active, please activate your licenses following the instructions in section Activate Thermo Scientific Software Licenses
check on http://localhost:8090/vendor web page that mcslmd status is Up . If mcslmd fails to start, please refer to FAQ – mcslmd Vendor Daemon Startup Troubleshooting Suggestions .
Congratulations! The server is now running and the Thermo Scientific vendor daemons are set up and ready for license installation.
4. Administrating your Licenses Warning : To be able to perform the following steps, be sure to have downloaded the latest version of the FlexNet server tools (see section 3.2 Download license server installer ).
In the following section we will describe the administration of licenses for “Thermo Scientific Software” products releases since 2020.3. For older versions license administration, please refer to this document.
4.1.2 Importing a License Certificate on the License Server
Open http://localhost:8090/vendor in a web browser on the server machine, to set up your license server as follows:
Click on Import License . Check Overwrite License File on License Server . Browse to select the license.dat certificate file you’ve generated with TLM portal Click on Import License . Click on the asglmd line.
Click on Start if the vendor daemon is Down, or on Reread License Files if the vendor daemon is already Up.
4.2 Administering the vendor daemon
The installed vendor daemons can be administered by mean of the web application located at http://localhost:8090/vendor You can check the status of the vendor daemon to determine if it is running or it is stopped.

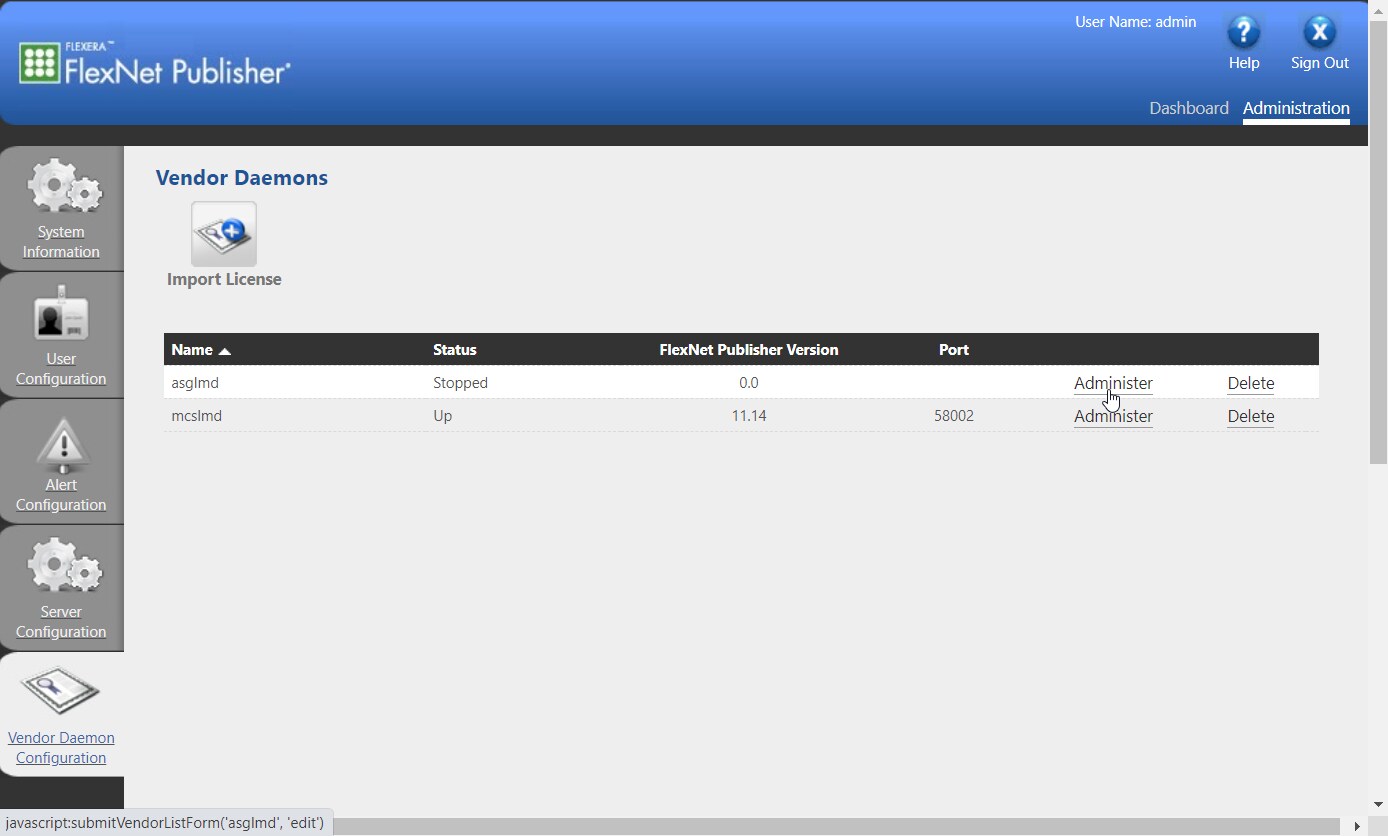

Figure 12- Enter “Administer” mode for a vendor daemon
You can Start, Stop, or Reread license files by clicking on the Administer link see Figure 10- Enter “Administer” mode for a vendor daemon . Asglmd is the vendor daemon used since 2020.3 release. When in Administer page you can:
Start the daemon if it is not running
Figure 13 – Press “Start” button to run vendor daemon

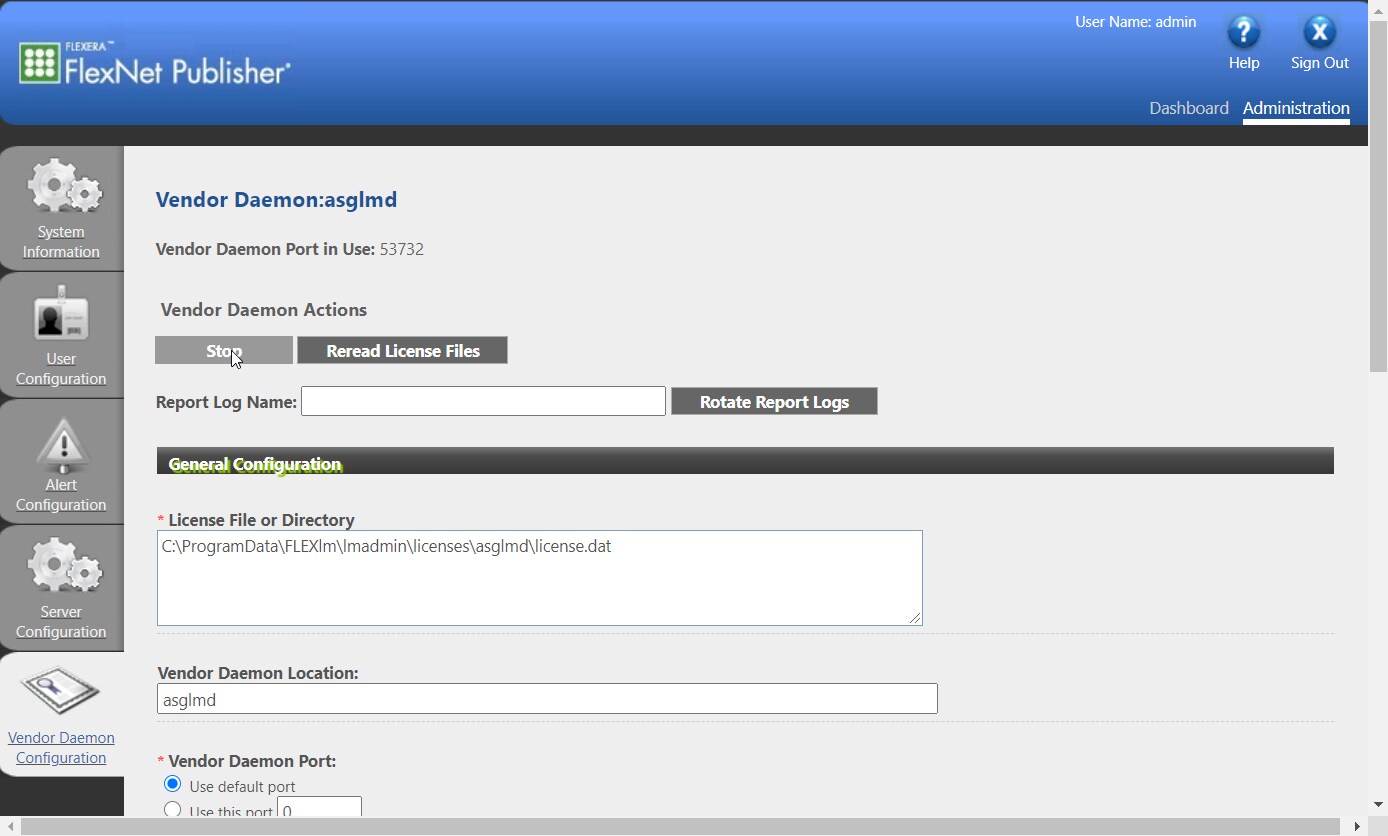

Stop the daemon or Reread the license file if the daemon is already running
Figure 14 – Buttons to control a running vendor daemon
To restart the daemon, you have to Stop it and then Start it.
4.3 Checking the Status of your Licenses At any time, you can check the status of your licenses. To view all available licenses, open http://localhost:8090/dashboard in a web browser and select Concurrent .
If you have installed the old mcslmd vendor daemon along with the new asglmd one you must select which vendor daemon to use before being able to see the related active licenses. This can be done by pressing the “Select” button after having chosen the desired vendor daemon in the FlexNet Publisher ® Dashboard, see following figures.

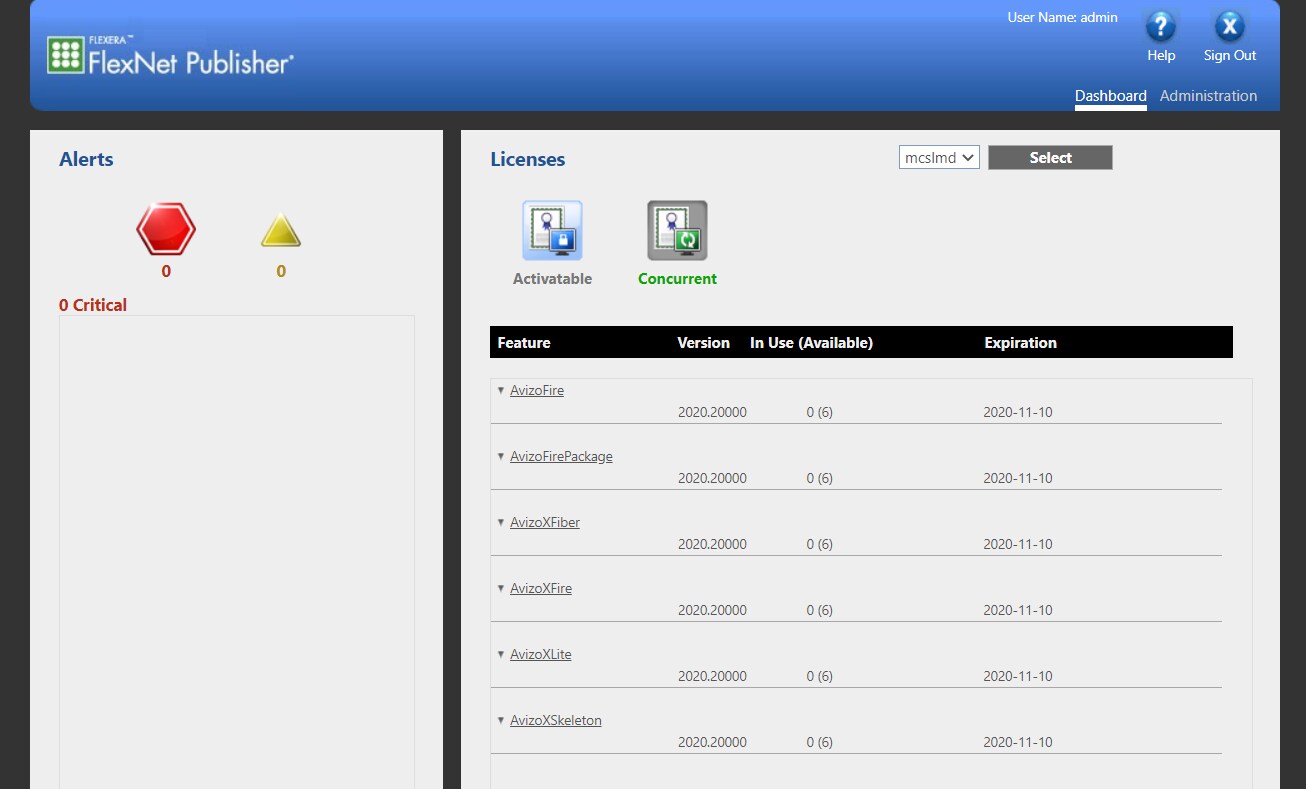

Figure 6 – FlexNet Publisher® Dashboard view for mcslmd vendor daemon (some < 2020.3 licenses are installed)

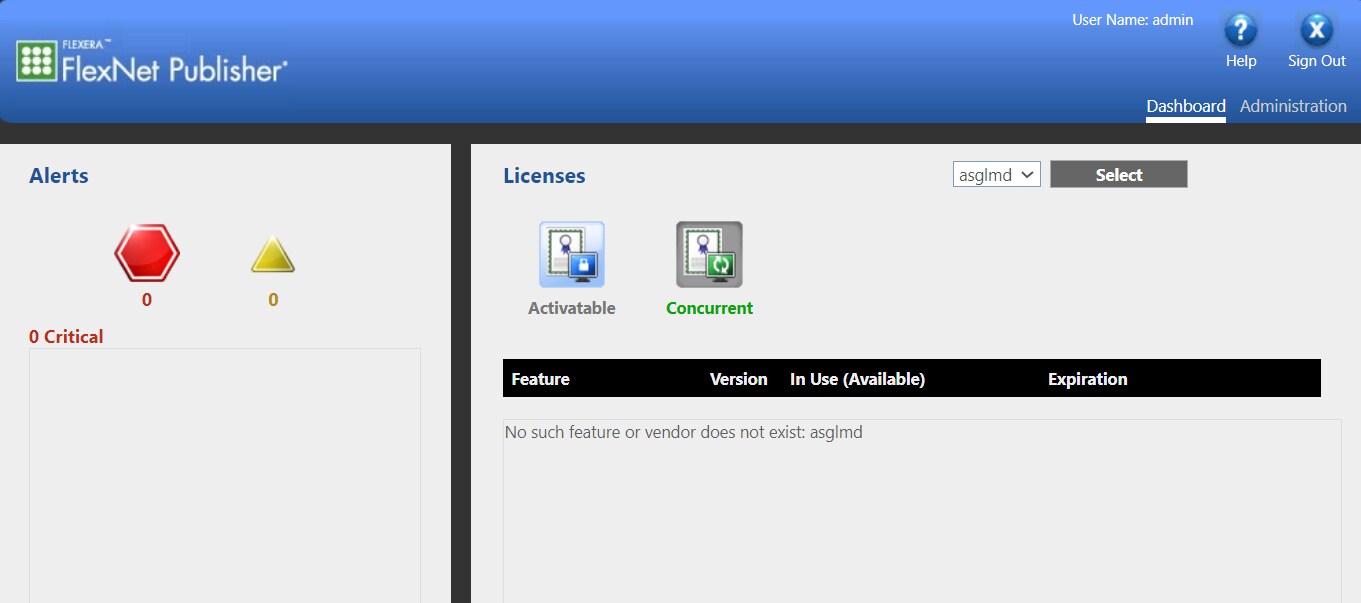

Figure 7 – FlexNet Publisher® Dashboard view for asglmd vendor daemon (no >= 2020.3 license is installed)
Note : If you encounter any issue with your configuration, please check that lmadmin and mcslmd /asglmd are allowed to communicate through the firewall.
4.4 Transferring your Licenses license transfer request form .
Thermo Scientific Licensing will send you back an updated license file for your new license server. You can then install this license file on your server following the instructions of section Importing your updated License Certificate on the License Server .

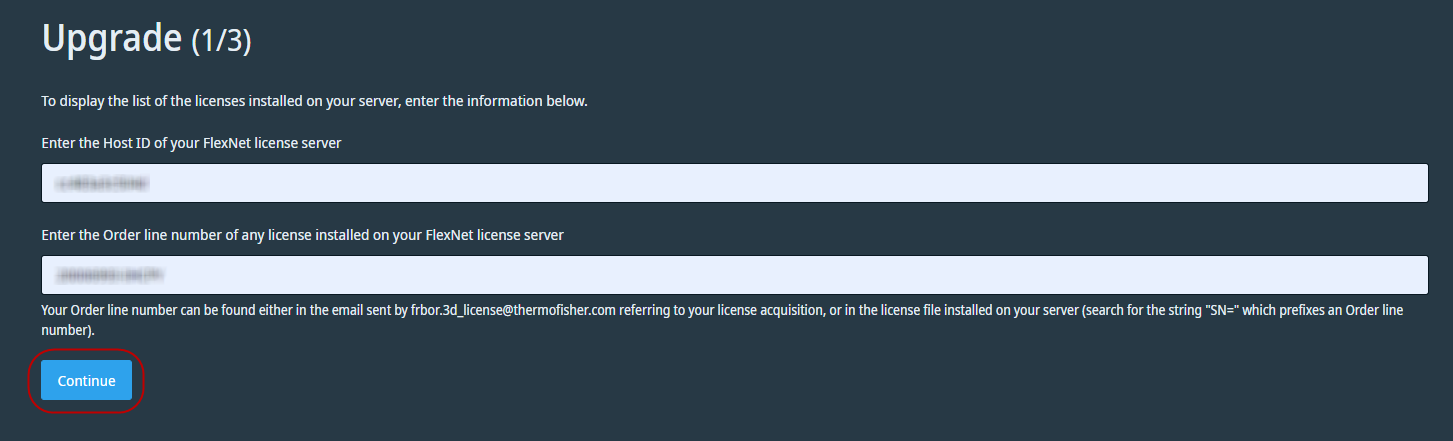

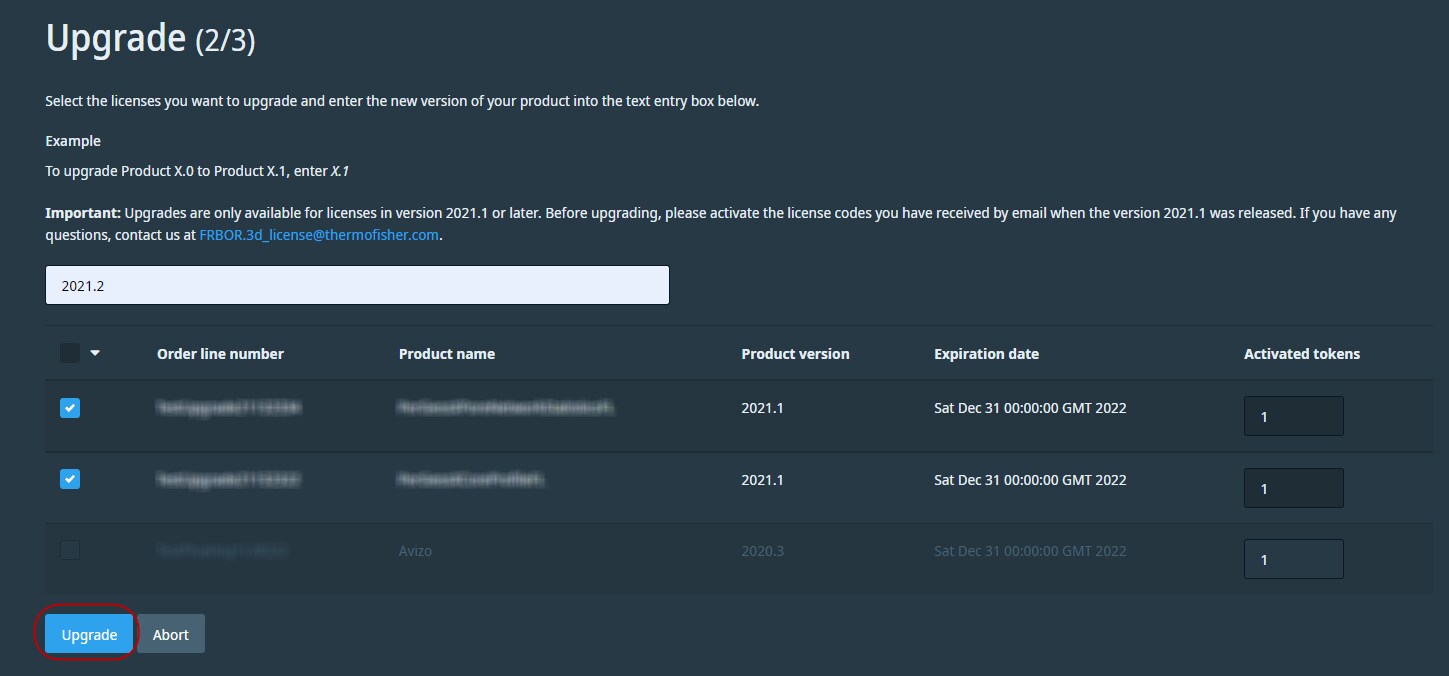

4.5 Upgrading your Licenses Important : upgrades are only available for licenses in version 2021.1 or later. If you are upgrading from a version before 2021.1, first activate the license codes you have received by email when the version 2021.1 was released, then upgrade.
4.5.2 Importing your updated License Certificate on the License Server
Open http://localhost:8090/vendor in a web browser on the server machine, to set up your license server as follows:
Click on Import License . Check Overwrite License File on License Server . Browse to select the license.dat certificate file you’ve received from the Licensing team or generated with TLM portal Click on Import License . Click on the asglmd line.
Click on Start if the vendor daemon is Down, or on Reread License Files if the vendor daemon is already Up.

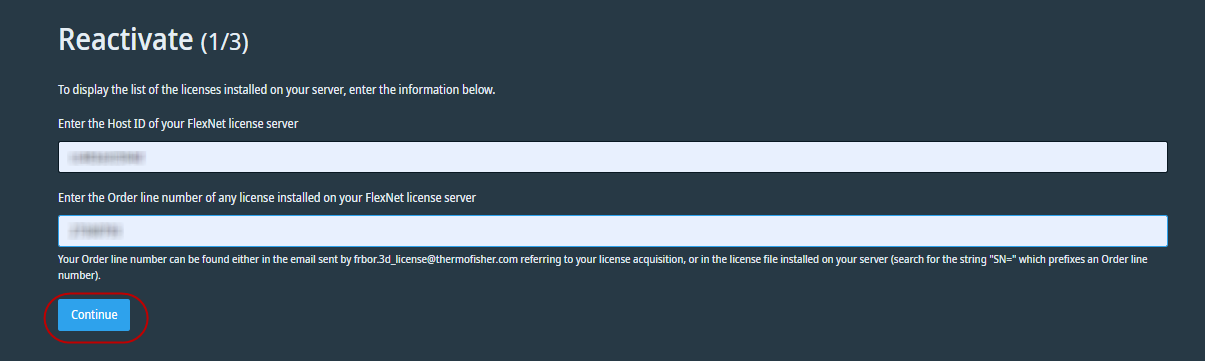

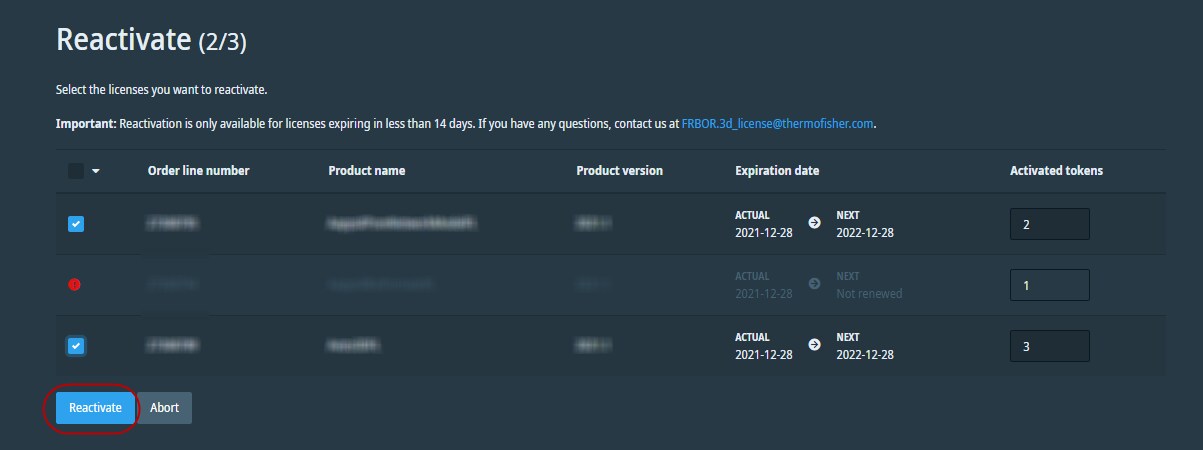

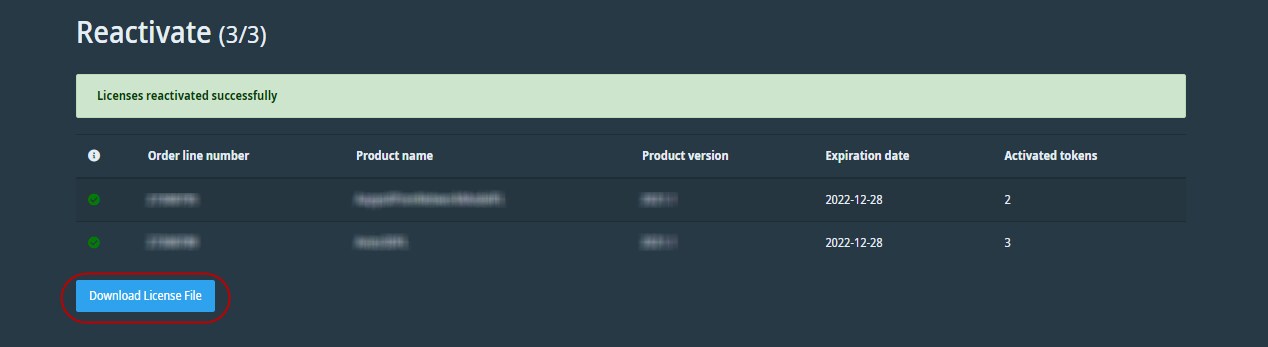

4.6 Reactivating your Renewable Licenses Important: the reactivation steps detailed below cannot be performed earlier than 14 days before your licenses expiration.
4.6.2 Importing your updated License Certificate on the License Server
Open http://localhost:8090/vendor in a web browser on the server machine, to set up your license server as follows:
Click on Import License . Check Overwrite License File on License Server . Browse to select the license.dat certificate file you’ve received from the Licensing team or generated with TLM portal Click on Import License . Click on the asglmd line.
Click on Start if the vendor daemon is Down, or on Reread License Files if the vendor daemon is already Up.
5. Additional License Control / Borrowing 5.1 Nomad Licensing / Borrowing To use our products on a system that is not always connected to the license server, you will need to borrow a license while you are connected to the server, then disconnect from the server. This kind of licensing is what we call nomad licensing. However, borrowing a license decreases the number of available licenses on the network.
Detailed instructions are given below. We will assume that standard FlexNet licensing, i.e., not borrowing, is already working correctly.
On the client machine, in a command prompt/terminal, use the cd command to go to the directory where the FlexNet utilities are installed.
By default, these utilities are found on the client machine in:
<application_install_dir>/share/license/FLEXnet To initiate borrowing, execute the lmutil program on the client as follows:
lmutil lmborrow asglmd * <enddate> <time>
where:
<enddate> Enddate is the date the license is to be returned in dd-mmm-yyyy format.
<time> Time is optional and is specified in 24-hour format (hh:mm) in the FlexEnabled application’s local time.
If time is unspecified, the checkout lasts until the end of the given end date.
For example:
lmutil lmborrow asglmd * 16-jan-2007 13:00
Start the product, then use all of the extensions that you want to borrow. Disconnect from the network. Exit the product and confirm that you can restart it and use all of the borrowed extensions.
To print information about borrowed features, issue the following command on the machine that borrowed the features:
lmutil lmborrow -status
Note : For more information, please refer to FlexNet Publisher – License Administration Guide chapter 7 “License Models”, section “ License Borrowing with BORROW “.
* Please note that for releases older than 2020.3 you should use the mcslmd
5.2 Additional License Controls Additional controls on floating licenses can be specified in an options file.
This can be done, for instance, by creating an asglmd.opt * options file in the same directory as your license file (i.e., < lmadmin install directory > /licenses/asglmd * )
The most important operating parameters are:
Limit the number of tokens that can be borrowed:
Example: The customer wants to reserve 60 tokens out of 100 total tokens. That leaves 40 tokens available to be borrowed.
Add a BORROW_LOWWATER line:
BORROW_LOWWATER <Product Name> 60 Limit the number of days a token can be borrowed:
Example: One week (7 days x 24 hours = 168 hours).
Add a MAX_BORROW_HOURS line:
MAX_BORROW_HOURS <Product Name> 168 Specify who is allowed to borrow:
a user
INCLUDE_BORROW <Product Name> USER Jim a group of users
INCLUDE_BORROW <Product Name> GROUP project_dev a computer
INCLUDE_BORROW <Product Name> HOST host_name a group of computers
INCLUDE_BORROW <Product Name> HOST_GROUP computer_group
Specify who is not allowed to borrow:
a user
EXCLUDE_BORROW <Product Name> USER Jim a group of users
EXCLUDE_BORROW <Product Name> GROUP project_dev a computer
EXCLUDE_BORROW <Product Name> HOST host_name a group of computers
EXCLUDE_BORROW <Product Name> HOST_GROUP computer_group
Defining groups:
Group of users:
GROUP project_dev Jim Mike Bob Group of computers:
HOST_GROUP computer_group host1 host2 host3
Reserving tokens:
Tokens can be reserved for specific users groups or computers.
Reserve 10 tokens for a user:
RESERVE 10 <Product Name> USER Jim Reserve 10 tokens for a group of users:
RESERVE 10 <Product Name> GROUP project_dev Reserve 10 tokens for a computer:
RESERVE 10 <Product Name> HOST host1 Reserve 10 tokens for a group of computers:
RESERVE 10 <Product Name> HOST_GROUP computer_group
Setting access permissions:
You can control who is allowed to use a product using the INCLUDE / EXCLUDE commands.
Who is allowed to use a product:
INCLUDE <Product Name> USER Jim
Can be used for GROUP , HOST and HOST_GROUP as described above. Who is not allowed to use a product:
EXCLUDE <Product Name> USER Mike
To validate these new options, you must perform the following actions:
Open http://localhost:8090/vendor in a web browser. Click on the asglmd * line. Click on Reread License Files . Restart the vendor daemon (see 4. 3 Administering the vendor daemon)
Note : For more information, please refer to FlexNet Publisher – License Administration Guide chapter 13, section “ Managing the Options File “.
* Please note that for releases older than 2020.3 you must use the mcslmd mcslmd mcslmd
6. Upgrading the FlexNet License Server When a new version of the Thermo Scientific FlexNet tools is released, you will need to update your FlexNet license server.
Before upgrading, stop lmadmin service:
Do not run the 32-bit lmadmin and the 64-bit lmadmin on the same system . If you are upgrading from the 32-bit lmadmin to the 64-bit version , you must stop and uninstall the 32-bit lmadmin first.
Follow the installation and configuration procedure described above in the above section Install lmadmin as License server manager , then run the “import licenses” steps described below:
Open http://localhost:8090/systeminfo in a web browser. In the Vendor Daemon Configuration tab, click on the Import License button. Select the license.dat file created for the previous installation. Check Overwrite License File on License Server and click on Import License . If asglmd (or mcslmd for old license) fails to start, please refer to FAQ – mcslmd Vendor Daemon Startup Troubleshooting Suggestions .
7. Management of licenses for versions prior to 2020.3 7.1 Hosting licenses for versions released before 2020.3 mcslmd version 11.16.6 or higher of the FlexNet tools on your system to host both vendor daemons. You can update you license server to 11.6.6 following those instructions:
Make sure you install both the vendor daemons:
If the new FlexNet server installation is done on the same hardware, the old entitlements will persist to server re-installation and you will see them appear in the FlexNet Publisher Dashboard application (see figure 6) . If you are going to install the FlexNet server on a different physical machine, then you must migrate your old entitlements to the new server by following the transfer procedure that is described in this document.
Of course, you also have the option to keep the old FlexNet server along with the a new installed one. In this case the two servers must be hosted by different physical servers.
7.2 Upgrading licenses of versions released before 2020.3
Manually de-activate the old version license, following the procedure described by this paragraph: 4.5 Transferring your Licenses
Activate your new activation code following the indications of this paragraph: 4.1 Adding (New) Licenses
8. Troubleshooting If you encounter technical problems with the installation and management of your FlexNet licensing server, please refer to the associated FAQ section .
For additional information, please refer to the FlexNet documentation.
The FlexNet Publisher – License Administration Guide contains a troubleshooting appendix.
If you need assistance getting your FlexNet licenses installed and operational, please contact our customer support group .
