Depthwise Volume Fraction

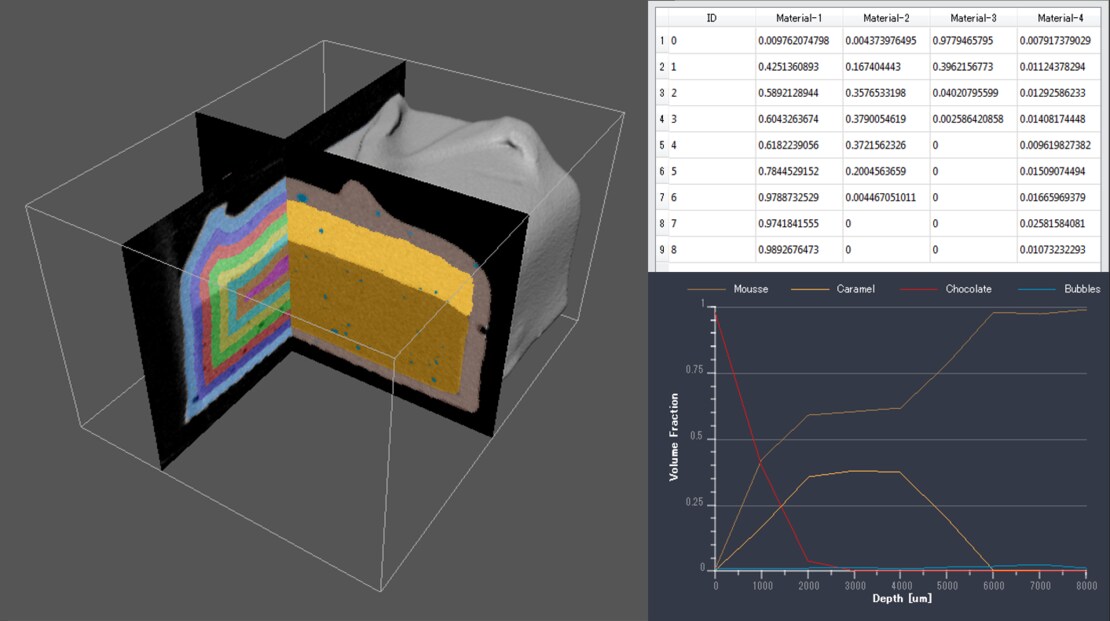

This module computes the volume fraction per separated region depending on depth from the surface of a segmented object.
This can be used for trend analysis between samples in the case of depth-wise structure is important to evaluate such as tablet of medicine or pesticide.

Connections:

Materials [required]
2D/3D label image (Uniform Label Field). Input label volume for computation of depth-wise volume fraction

Single Object Mask [required]
2D/3D binary label image (Uniform Label Field with 2 labels). Input mask volume to specify the region for computation

Ports:

Space [unit] [required]
Height of each separated region

Outputs:

A table object stores computed volume fraction per separated regions, distance map, and labels representing separated regions.
